DOMESTIC WASTEWATER TREATMENT
Independently, independently, at home
Our company offers a comprehensive portfolio of solutions for small-scale wastewater treatment for 4 to 50 people. Our product range includes the market-leading, non-electric ClearFox® Nature system and the award-winning QuickOne SBR system, certified to EN12566-3. In addition to complete systems, we also offer flexible technology and equipment packages that can be built locally or retrofitted into existing tanks.
Our company is German
exclusive Hungarian distributor of the brand.
WHERE DO WE USE IT?
In the range of 4-50 population equivalents (PE), typical wastewater sources include households, small tourism, small schools and smaller catering establishments. However, our flexible solutions can be used in any small-scale application that generates wastewater.
CHARACTERISTICS OF WASTEWATER
The characteristics of wastewater can vary depending on the application. In catering establishments such as restaurants, the contamination may be higher than normal due to oil, grease and high organic matter content. In schools, urine (ammonia) may be significantly high due to toilet use. The composition of domestic wastewater is usually standard, with a BOD value of approx. 300 mg/l. We are able to treat all types of wastewater to a level that ensures safe disposal or recycling.
OUR PRODUCTS

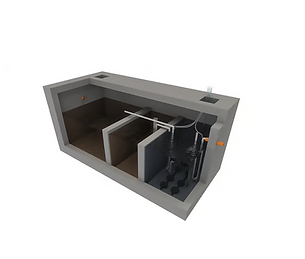

ClearFox® SBR
The ClearFox® SBR process is a highly efficient wastewater treatment system that can be installed in tanks of any shape or material.
ClearFox® Nature
Wastewater treatment between 4 and 50 PE (population equivalent)
A sustainable wastewater treatment system that uses natural ventilation to operate the cleaning process. No electricity is required. Installed in over 50 countries.
About the System
The ClearFox® Nature is a prefabricated wastewater treatment plant manufactured in Germany by PPU Umwelttechnik GmbH. It is designed for treating sewage from individual family homes and small communities of up to 50 people. The system is suitable for both new developments and the retrofitting of existing septic tanks. The treated effluent can be safely discharged into the environment or reused for landscape irrigation.
Components
1. Inlet
2. Settling tank
3. Flow control device
4. Steel reinforcement
5. Ventilation system
6. Tilting element
7. Flow distribution system
8. Biological reactor
9. Spout
Specification:
Energy consumption: 0 kWh
Dimensions: Height: 171 cm
Length: 310 cm
Width: 122 cm
Capacity: 4 PE
Discharge class: C
Cleaning performance:
COD: 85.9%
BOD: 94.8%
Usage level: Direct derivation
Material: KG/PE
Manufacturing process and warranty
ClearFox® Nature is manufactured entirely under strict quality control at our headquarters in Bayreuth, Germany. The single-piece rotationally molded container is made with stainless steel reinforcement. The independently tested and patented process technology developed by PPU Umwelttechnik GmbH in 2008 guarantees compliance with all required cleaning standards. We offer a 15-year warranty on selected components. With successful projects in over 50 countries and a dedicated support team, ClearFox® Nature is a product built on innovation, excellent quality and reliable after-life service.
You can find more information on the manufacturer's website by clicking here .
ClearFox® QuickOne
Domestic wastewater treatment between 4 and 24 PE (population equivalent)
Prefabricated domestic wastewater treatment plant. Rotationally molded, single-chamber HDPE tank with stainless steel reinforcement. Intelligent SBR process technology automatically regulates aeration time in case of overload or underload.
About the system
For up to 24 PE (population equivalent), the ClearFox® QuickOne+ is a fully pre-assembled SBR domestic wastewater treatment plant manufactured in Germany by PPU Umwelttechnik GmbH. It is suitable for new construction or for the modernization of existing wastewater tank systems, whether in houses, schools, restaurants or other commercial and domestic applications. With additional modules such as phosphorus removal and disinfection, it can also be installed in sensitive areas. It has been tested and proven that the sludge removal interval exceeds 1 year. Thanks to the integrated pressure sensor, the QuickOne can independently adjust the aeration times. In case of higher inflow peaks, the system increases the oxygen supply to improve performance, while in case of low inflow it switches to standby mode.

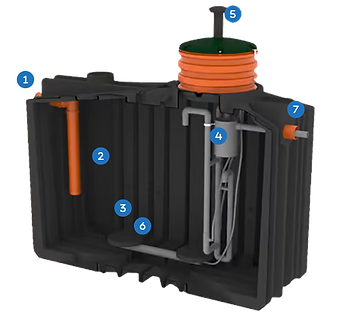

Components
1. Inlet
2. Settling tank
3. Aeration system
4. Air lift pump
5. Access to control unit
6. Pressure sensor
7. Spout
Specification:
Energy consumption: 0.52 kWh/day
Dimensions: Height: 220 cm
Length: 153 cm
Width: 122 cm
Capacity: 4 PE
Discharge class: N
Cleaning performance:
COD: 93.7%
BOD: 98.1%
TN: 67.6%
NH₄-N: 99.4%
SS: 95.8%
Outlet quality:
COD: 48 mg/L
BOD: 6 mg/L
TN: 18 mg/L
NH₄-N: 0.2 mg/L
SS: 17 mg/L
Usage level: Direct derivation
Material: KG/PE
Manufacturing process and warranty
The ClearFox® QuickOne is manufactured entirely under strict quality control at our headquarters in Bayreuth, Germany. The single-piece rotationally molded container is made with stainless steel reinforcement. The independently tested and patented process technology developed by PPU Umwelttechnik GmbH in 2008 guarantees compliance with all required cleaning standards. We offer a 15-year warranty on selected components. With successful projects in over 50 countries and a dedicated support team, ClearFox® Nature is a product built on innovation, excellent quality and reliable after-life service.
You can find more information on the manufacturer's website by clicking here .
